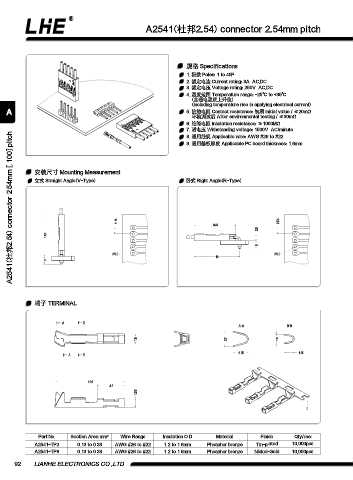

A2541(杜邦2.54) connector 2.54mm pitch

規格 Specifications
1. 極數 Poles: 1 to 40P
2. 額定電流 Current rating: 3A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +95℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
A2541(杜邦2.54) connector 2.54mm [.100] pitch
8. 適用線規 Applicable wire: AWG #26 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

2.54 2.54
16.5
2.6
16.5
3
n0.9 n0.9
18
3

端子 TERMINAL

A B
A-A B-B
1.6 2.7 1.6

2.55 1.65
A B

11.6
4.6
1.55

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2541-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Tin-plated 10,000pcs
A2541-TP8 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Nickel-Gold 10,000pcs
