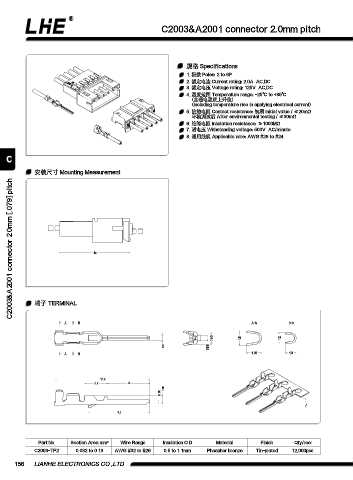

C2003&A2001 connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 6P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 125V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #24

C

安裝尺寸 Mounting Measurement
C2003&A2001 connector 2.0mm [.079] pitch

14

端子 TERMINAL

A B A-A B-B

1.45 1.8 1.2
0.5 0.68
A B 1.85 1.3

11.2
2.7 5
1.06
0.55

7.3

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C2003-TP2 0.032 to 0.13 AWG #32 to #26 0.5 to 1.1mm Phosphor bronze Tin-plated 12,000pcs

156 LIANHE ELECTRONICS CO.,LTD.
