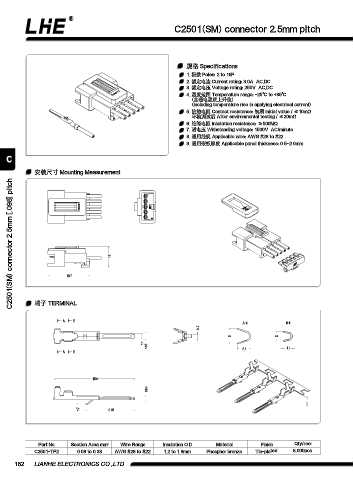

Page 174 - 浙江聯和電子有限公司目錄 2020-04-20

}
C2501(SM) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥500MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #22
9. 適用嵌板厚度 Applicable panel thickness: 0.5~2.0mm
C

安裝尺寸 Mounting Measurement
C2501(SM) connector 2.5mm [.098] pitch

10

19.7

端子 TERMINAL

A B
A-A B-B
0.7
3 2
1.1
1.85 2.6 1.8
A B

15.9
0.64

1.7 9.65

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 8,000pcs

162 LIANHE ELECTRONICS CO.,LTD.
