P. 184
}

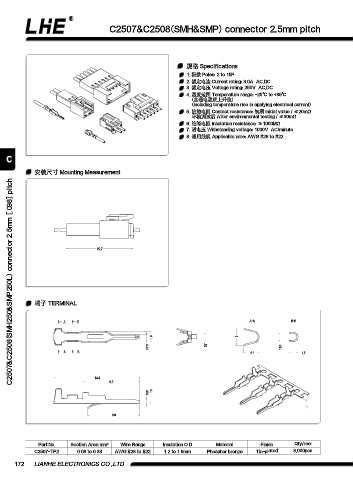

C2507&C2508(SMH&SMP) connector 2.5mm pitch
規格 Specifications
1. 極數 Poles: 2 to 15P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #22
C
安裝尺寸 Mounting Measurement
C2507&C2508(SMH250&SMP250L) connector 2.5mm [.098] pitch
22.7
端子 TERMINAL
A B A-A B-B
1.9 3
0.75 0.7 1.65
A B 2.6 1.5
14.4
9.6
0.75 1.5
8.8
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C2507-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 8,000pcs
172 LIANHE ELECTRONICS CO.,LTD.
