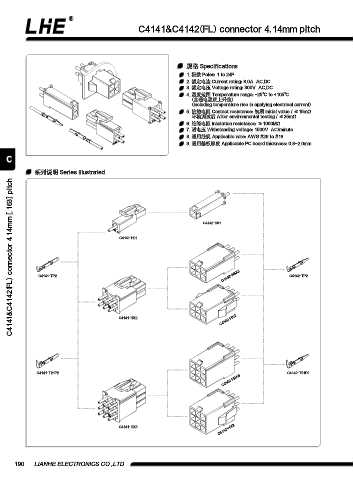

C4141&C4142(FL) connector 4.14mm pitch

規格 Specifications
1. 極數 Poles: 1 to 24P
2. 額定電流 Current rating: 8.0A AC,DC
3. 額定電壓 Voltage rating: 300V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +105℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤15mΩ
環境測試后 After environmental testing / ≤25mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #26 to #18
9. 適用基板厚度 Applicable PC board thickness: 0.8~2.0mm
C

系列說明 Series illustrated
C4141&C4142(FL) connector 4.14mm [.163] pitch

C4142-H01

C4141-H01

C4142-HBX2 C4142-TP2
C4141-TP2

C4142-HX2
C4141-HX2

C4141-T21P2 C4142-T21P2
C4142-HBX3

C4142-HX2
C4141-HX3

190 LIANHE ELECTRONICS CO.,LTD.
