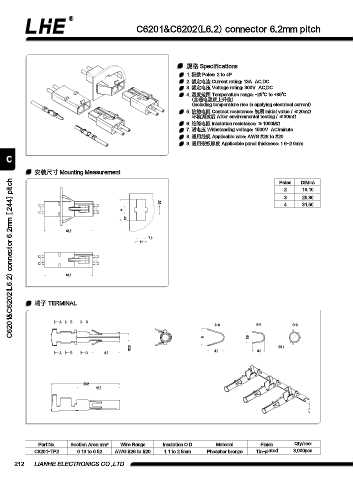

C6201&C6202(L6.2) connector 6.2mm pitch

規格 Specifications
1. 極數 Poles: 2 to 4P
2. 額定電流 Current rating: 13A AC,DC
3. 額定電壓 Voltage rating: 300V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #26 to #20
9. 適用嵌板厚度 Applicable panel thickness: 1.6~2.0mm
C

安裝尺寸 Mounting Measurement
C6201&C6202(L6.2) connector 6.2mm [.244] pitch
Poles DIM=A
2 19.10
3 25.30
3.7
4 31.50
A
3.7
43.5
7.8
11

43.5

端子 TERMINAL

A B C
A-A B-B C-C

5 3.5
2.5 n3.2
? 4.9 3.8
A B C 8.3

20.2
12.8

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C6201-TP2 0.13 to 0.52 AWG #26 to #20 1.1 to 2.5mm Phosphor bronze Tin-plated 3,000pcs

212 LIANHE ELECTRONICS CO.,LTD.
