P. 112
}

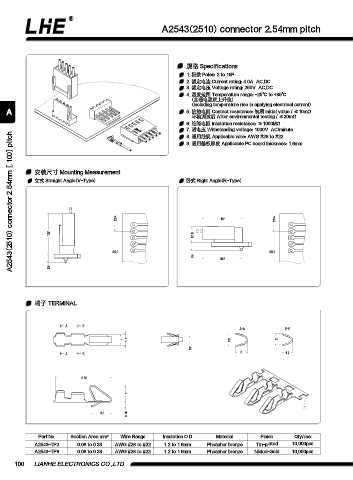

A2543(2510) connector 2.54mm pitch
規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 4.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2543(2510) connector 2.54mm [.100] pitch
8. 適用線規 Applicable wire: AWG #28 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.6mm
安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)
2.54 16.1 2.54
16.1 6.15
n0.9 n0.9
3.4
15.6
3.4
端子 TERMINAL
A B
A-A B-B
1 1.9 2.3 2
0.7
A B 2 1.7
9.65
3
3.5 0.65
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2543-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
A2543-TP8 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Nickel-Gold 10,000pcs
100 LIANHE ELECTRONICS CO.,LTD.
