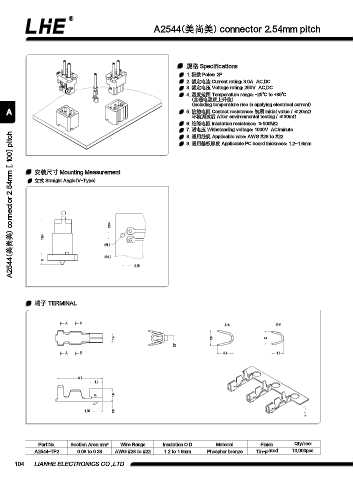

A2544(美尚美) connector 2.54mm pitch

規格 Specifications
1. 極數 Poles: 2P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥500MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2544(美尚美) connector 2.54mm [.100] pitch
8. 適用線規 Applicable wire: AWG #28 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type)

2.54
10.4
n1.1

n0.9
3
2.35

端子 TERMINAL

A B A-A B-B

1.4 2.3 2
0.7
A B 2.4 1.8

6.7
1.9

1.9

1.35 0.5

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2544-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
