P. 118
}

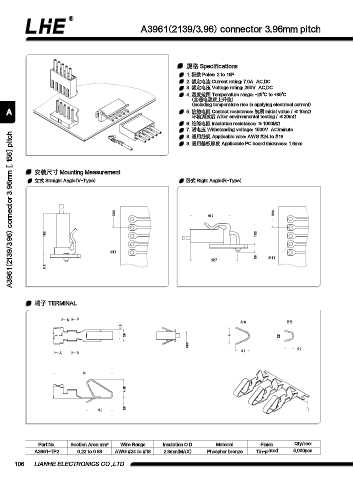

A3961(2139/3.96) connector 3.96mm pitch
規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 7.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
A3961(2139/3.96) connector 3.96mm [.156] pitch
8. 適用線規 Applicable wire: AWG #24 to #18
9. 適用基板厚度 Applicable PC board thickness: 1.6mm
安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)
3.96 19.2 3.96
19.2 10.2
n1.7
3.6 n1.7
22.7
3.6
端子 TERMINAL
A B
A-A B-B
1.9
2.9 4 2.5
0.95
3.2 2.2
A B
14
4.55
6.2 0.9
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A3961-TP2 0.22 to 0.83 AWG #24 to #18 2.8mm(MAX) Phosphor bronze Tin-plated 5,000pcs
106 LIANHE ELECTRONICS CO.,LTD.
