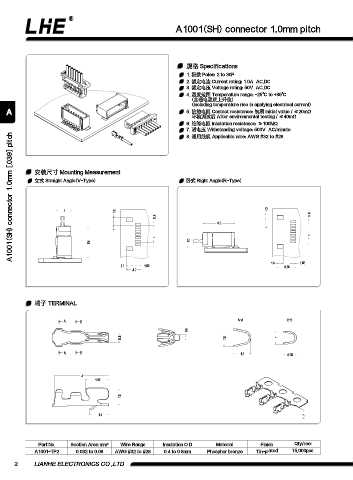

A1001(SH) connector 1.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 30P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 50V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1001(SH) connector 1.0mm [.039] pitch
8. 適用線規 Applicable wire: AWG #32 to #28

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

3 1.2 1.2
0.6 0.6
6.3
1
1
1
1
6.4 3.1

1.8 1.55
1.8 1.55 5.55
4.2

端子 TERMINAL

A B A-A B-B
0.4
0.8 1.3 1

A B 1.3 0.95

4
1.65

1.3

1.4

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1001-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 15,000pcs
