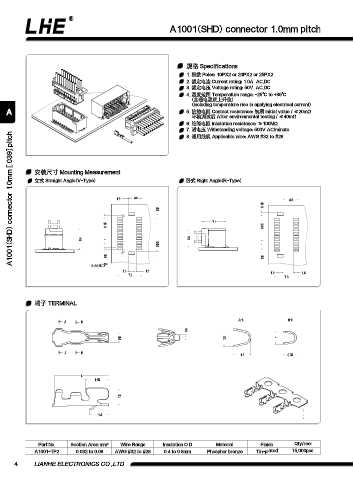

Page 16 - 浙江聯和電子有限公司目錄 2020-04-20

}
A1001(SHD) connector 1.0mm pitch

規格 Specifications
1. 極數 Poles: 10PX2 or 20PX2 or 25PX2
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 50V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1001(SHD) connector 1.0mm [.039] pitch
8. 適用線規 Applicable wire: AWG #32 to #28

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

1.6 3.9 4.6
0.85
0.6
7.1
0.55 0.95

6.4 1 5.6 1
0.85

0.6 0.6
+ 0.05
2-n0.55 -0
1.8 1.6 1.8 1.6
7.2 7.3

端子 TERMINAL

A B A-A B-B
0.4
0.8 1.3 1

A B 1.3 0.95

4
1.65

1.3

1.4

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1001-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 15,000pcs

4 LIANHE ELECTRONICS CO.,LTD.
