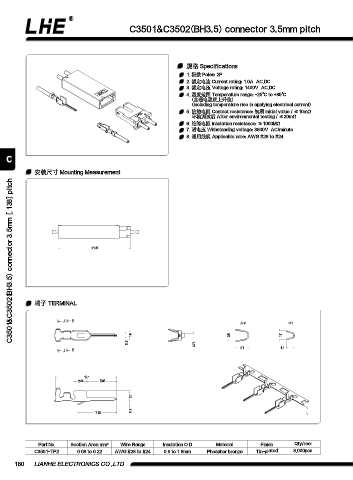

C3501&C3502(BH3.5) connector 3.5mm pitch

規格 Specifications
1. 極數 Poles: 2P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 1400V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 3800V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #24

C

安裝尺寸 Mounting Measurement
C3501&C3502(BH3.5) connector 3.5mm [.138] pitch

21.35

端子 TERMINAL

A B
A-A B-B
1.9 2.5 1.7
0.5
0.75 2.7 1.6
A B

12.1
2.65 5.85

2.1

0.6
7.75

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C3501-TP2 0.08 to 0.22 AWG #28 to #24 0.9 to 1.8mm Phosphor bronze Tin-plated 8,000pcs

180 LIANHE ELECTRONICS CO.,LTD.
