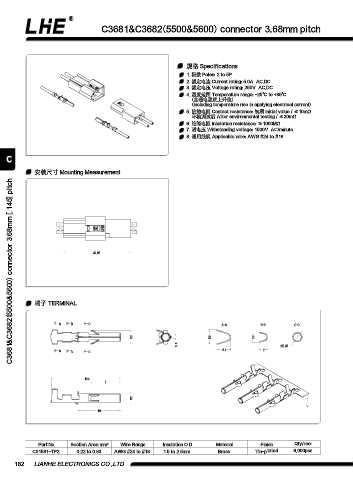

C3681&C3682(5500&5600) connector 3.68mm pitch
規格 Specifications
1. 極數 Poles: 2 to 5P
2. 額定電流 Current rating: 5.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #24 to #18
C
安裝尺寸 Mounting Measurement
C3681&C3682(5500&5600) connector 3.68mm [.145] pitch
31.86
端子 TERMINAL
A B C A-A B-B C-C
3.2 3.4 2.4
0.6 n2.25
A B C 3.4 2
16.3
7
2
?
10.1
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C01581-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs
