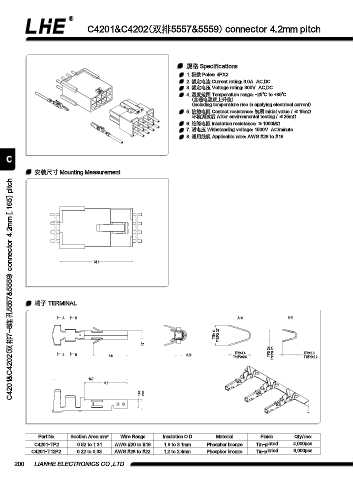

C4201&C4202(雙排5557&5559) connector 4.2mm pitch

規格 Specifications
1. 極數 Poles: 4PX2
2. 額定電流 Current rating: 9.0A AC,DC
3. 額定電壓 Voltage rating: 300V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤15mΩ
環境測試后 After environmental testing / ≤25mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #16

C

安裝尺寸 Mounting Measurement
C4201&C4202(雙排7~8連孔5557&5559) connector 4.2mm [.165] pitch

34.6

端子 TERMINAL

A B A-A B-B

4
TP2= T12P2=2.7
1.7
2.4
A B 6.8 0.82 TP2= 4.4 TP2= T12P2=2.1 TP2= 2.9
T12P2=2.6 T12P2=2.2

14.7
8.6
1.65 2.05

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C4201-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 4,000pcs
C4201-T12P2 0.22 to 0.33 AWG #28 to #22 1.2 to 2.4mm Phosphor bronze Tin-plated 9,000pcs

200 LIANHE ELECTRONICS CO.,LTD.
