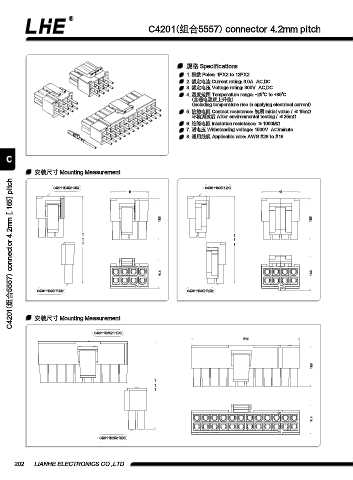

C4201(組合5557) connector 4.2mm pitch
規格 Specifications
1. 極數 Poles: 1PX2 to 12PX2
2. 額定電流 Current rating: 9.0A AC,DC
3. 額定電壓 Voltage rating: 300V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤15mΩ
環境測試后 After environmental testing / ≤25mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1500V AC/minute
8. 適用線規 Applicable wire: AWG #28 to #16
C
安裝尺寸 Mounting Measurement
C4201(組合5557) connector 4.2mm [.165] pitch
C4201-H04X2-L3X2 C4201-H04X2-L2X2
18 18
19.5 19.5
→ → → → → →
14.4 16.8
C4201-H04X2-R1X2 C4201-H04X2-R2X2
安裝尺寸 Mounting Measurement
C4201-H12X2-L10X2
51.6
19.5
→ → →
14.4
C4201-H12X2-R2X2
