P. 22
}

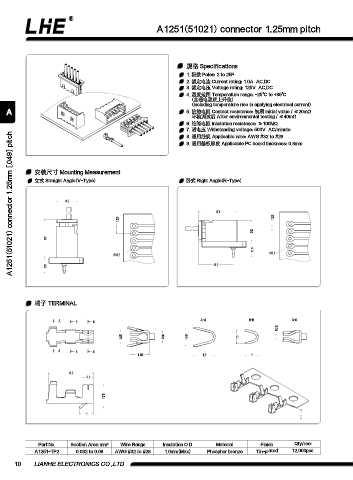

A1251(51021) connector 1.25mm pitch
規格 Specifications
1. 極數 Poles: 2 to 25P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 125V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1251(51021) connector 1.25mm [.049] pitch
8. 適用線規 Applicable wire: AWG #32 to #28
9. 適用基板厚度 Applicable PC board thickness: 0.8mm
安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)
3.2
5.7
1.25 1.25
3.2
5.7
2.3
n0.5 n0.5
2.3 5.2
端子 TERMINAL
A B C A-A B-B C-C
0.13
0.75 0.93 1.45 1.1
A B C
1.45 1.6 1
3.3
0.8
1.78
1
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1251-TP2 0.032 to 0.08 AWG #32 to #28 1.0mm(Max) Phosphor bronze Tin-plated 12,000pcs
10 LIANHE ELECTRONICS CO.,LTD.
