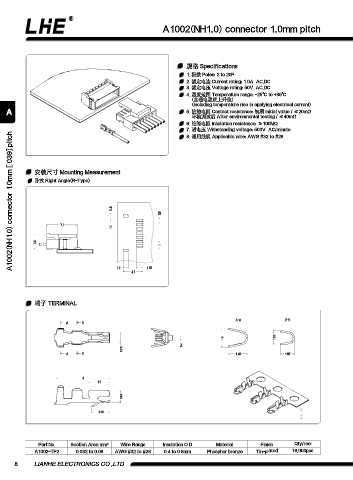

A1002(NH1.0) connector 1.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 20P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 50V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1002(NH1.0) connector 1.0mm [.039] pitch
8. 適用線規 Applicable wire: AWG #32 to #28

安裝尺寸 Mounting Measurement
臥式 Right Angle(R-Type)

0.6
0.6

7.3
1.1
3.9
1

1.2 1.55
4.7

端子 TERMINAL

A-A B-B
A B

1.4 1.05
0.4
0.78
A B 1.45 1.05

4
1.6

0.95

1.35

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1002-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 16,000pcs

8 LIANHE ELECTRONICS CO.,LTD.
