P. 240
}

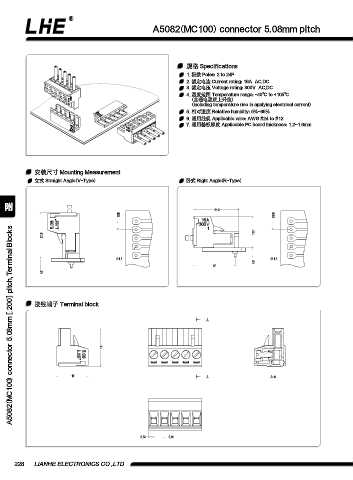

A5082(MC100) connector 5.08mm pitch
規(guī)格 Specifications
1. 極數(shù) Poles: 2 to 24P
2. 額定電流 Current rating: 16A AC,DC
3. 額定電壓 Voltage rating: 300V AC,DC
4. 溫度范圍 Temperature range: -40℃ to +105℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 相對濕度 Relative humidity: 5%~95%
6. 適用線規(guī) Applicable wire: AWG #24 to #12
7. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm
安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)
附 21.3
5.08 5.08
A5082(MC100) connector 5.08mm [.200] pitch,Terminal Blocks
15.1
21.8
n1.5 n1.5
4.5
20
4.5
接線端子 Terminal block
A
18
15 A A-A
2.54 5.08
228 LIANHE ELECTRONICS CO.,LTD.
