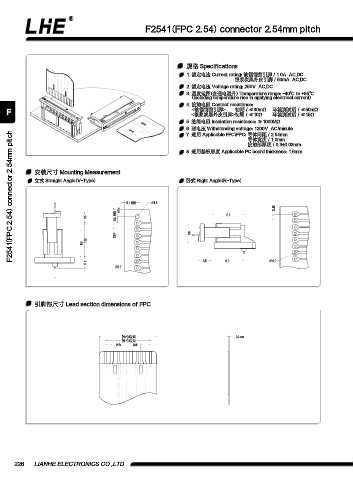

F2541(FPC 2.54) connector 2.54mm pitch

規(guī)格 Specifications
1. 額定電流 Current rating: 鍍錫銅箔引腳 / 1.0A AC,DC
銀漿炭黑外皮引腳 / 50mA AC,DC
2. 額定電壓 Voltage rating: 250V AC,DC
3. 溫度范圍(含通電溫升) Temperature range: -40℃ to +85℃
(Including temperature rise in applying electrical current)
4. 接觸電阻 Contact resistance:
F <鍍錫銅箔引腳> 初期 / ≤30mΩ 環(huán)境測試后 / ≤50mΩ
<銀漿炭黑外皮引腳>初期 / ≤10Ω 環(huán)境測試后 / ≤15Ω
5. 絕緣電阻 Insulation resistance: ≥1000MΩ
6. 耐電壓 Withstanding voltage: 1200V AC/minute
F2541(FPC 2.54) connector 2.54mm pitch
7. 適用 Applicable FFC\FPC: 導體間距 / 2.54mm
導體寬度 / 1.0mm
接觸部厚度 / 0.3±0.03mm
8. 適用基板厚度 Applicable PC board thickness: 1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

5.1 MIN n1.5
2.54 2.54
5.3 MIN 9.6
3.5

2.54 5.8
10.1
8.4

3.5 9.9 n0.9
3.2
n0.9

引腳部尺寸 Lead section dimensions of FPC

(N+1)X2.54 0.3 `0.03
(N-1)X2.54
2.54 3.81

226 LIANHE ELECTRONICS CO.,LTD.
