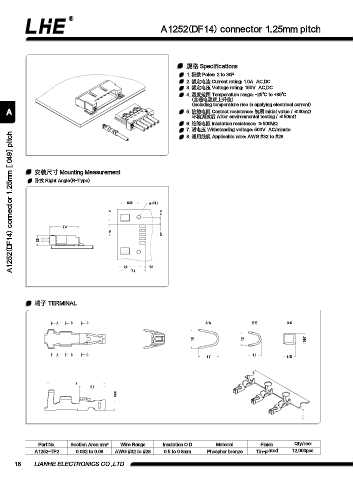

A1252(DF14) connector 1.25mm pitch

規格 Specifications
1. 極數 Poles: 2 to 30P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 150V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環境測試后 After environmental testing / ≤50mΩ
6. 絕緣電阻 Insulation resistance: ≥500MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1252(DF14) connector 1.25mm [.049] pitch
8. 適用線規 Applicable wire: AWG #32 to #28

安裝尺寸 Mounting Measurement
臥式 Right Angle(R-Type)

5.35 2-n1.1
2.3
2
7.4
1.15 0.7
2.6

2.6 1.8
7.4

端子 TERMINAL

A B C A-A B-B C-C

1.6 1.2 0.97

A B C 1.7 1.1 1.05

5
2.2
0.88

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1252-TP2 0.032 to 0.08 AWG #32 to #28 0.5 to 0.8mm Phosphor bronze Tin-plated 12,000pcs
