P. 30
}

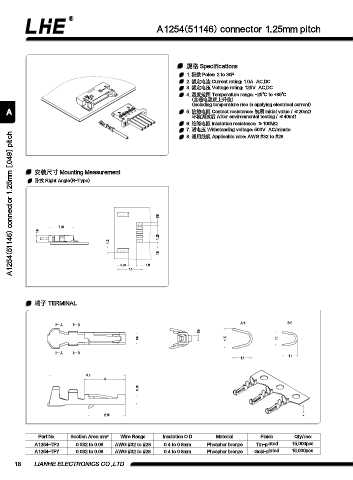

A1254(51146) connector 1.25mm pitch
規格 Specifications
1. 極數 Poles: 2 to 30P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 125V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1254(51146) connector 1.25mm [.049] pitch
8. 適用線規 Applicable wire: AWG #32 to #28
安裝尺寸 Mounting Measurement
臥式 Right Angle(R-Type)
0.8
7.35
1.9
1.25
1.3
1.8
3.35 1.9
7.5
端子 TERMINAL
A B A-A B-B
0.4
0.9 1.5 1.1
A B
1.1
1.5
5.6
3
0.76
2.75
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1254-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 15,000pcs
A1254-TP7 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Gold-plated 15,000pcs
18 LIANHE ELECTRONICS CO.,LTD.
