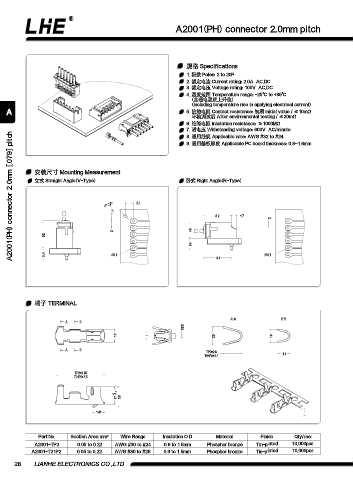

A2001(PH) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 20P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 100V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 800V AC/minute
A2001(PH) connector 2.0mm [.079] pitch
8. 適用線規 Applicable wire: AWG #32 to #24
9. 適用基板厚度 Applicable PC board thickness: 0.8~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

+ 0.2 2.3
n 1 - 0
1.4
8.2 1.7
2
2 4.8
8.2
3.4
3.4 n0.7 n0.7
8.4

端子 TERMINAL

A-A B-B
A B
0.65
1.5 1 2.5 1.6

A B
TP2=2.6
T21P2= 2.5 1.4

TP2= 5.75
T21P2=5.5

2.1 - 0.1 2.5
0
+
1.45

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2001-TP2 0.05 to 0.22 AWG #30 to #24 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
A2001-T21P2 0.05 to 0.22 AWG #30 to #26 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs

28 LIANHE ELECTRONICS CO.,LTD.
