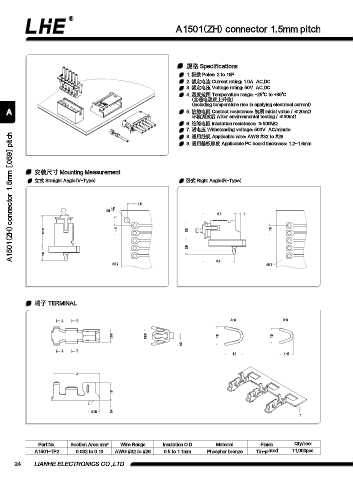

A1501(ZH) connector 1.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 50V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥500MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1501(ZH) connector 1.5mm [.059] pitch
8. 適用線規 Applicable wire: AWG #32 to #26
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

1.5
+ 0.2
n 1 - 0
6.6 1
1
6.15 1.5 3.8 1.5

2.9
2.9
6.4
n0.7 n0.7

端子 TERMINAL

A B A-A B-B

1.05 0.83 1.6 1.3
0.5
A B
1.6 1.15

4

1.5

0.95 0.4

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1501-TP2 0.032 to 0.13 AWG #32 to #26 0.5 to 1.1mm Phosphor bronze Tin-plated 11,000pcs
