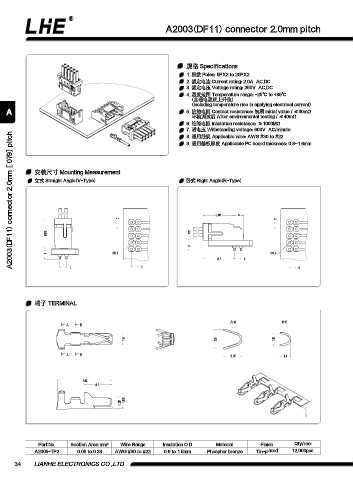

A2003(DF11) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 5PX2 to 20PX2
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 800V AC/minute
A2003(DF11) connector 2.0mm [.079] pitch
8. 適用線規 Applicable wire: AWG #30 to #22
9. 適用基板厚度 Applicable PC board thickness: 0.8~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

9.05 3
2 2

9.05 5.2

3
3 n0.7 n0.7
9.3 2
2 2 2

端子 TERMINAL

A-A B-B
A B

1.4 2.4 1.6

A B
2.15 1.4

6.5
3.3

1.25 1.85

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs

34 LIANHE ELECTRONICS CO.,LTD.
