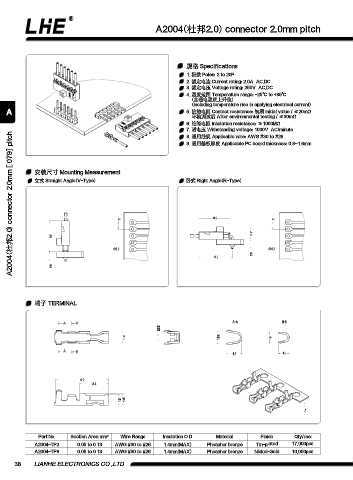

A2004(杜邦2.0) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 20P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤30mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2004(杜邦2.0) connector 2.0mm [.079] pitch
8. 適用線規 Applicable wire: AWG #30 to #26
9. 適用基板厚度 Applicable PC board thickness: 0.8~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

9.2
2 2
3.7
9.2
n0.8 n0.8
2.8
9.9
2.8

端子 TERMINAL

A B A-A B-B
0.35
1.4 1.65 1.4

A B 1.8 1.3

6.2
3.4

1.3 1.45

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2004-TP2 0.05 to 0.13 AWG #30 to #26 1.4mm(MAX) Phosphor bronze Tin-plated 17,000pcs
A2004-TP8 0.05 to 0.13 AWG #30 to #26 1.4mm(MAX) Phosphor bronze Nickel-Gold 10,000pcs

38 LIANHE ELECTRONICS CO.,LTD.
