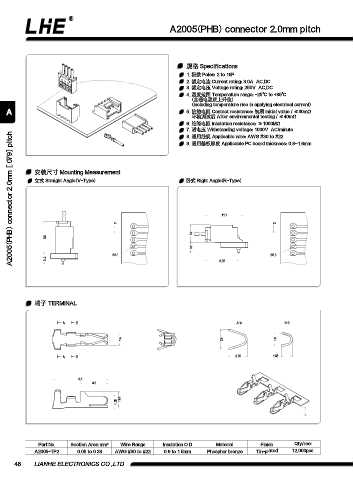

A2005(PHB) connector 2.0mm pitch

規(guī)格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環(huán)境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2005(PHB) connector 2.0mm [.079] pitch
8. 適用線規(guī) Applicable wire: AWG #30 to #22
9. 適用基板厚度 Applicable PC board thickness: 0.8~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

11.1
2 2
5.2
9.6
3.2
n0.8 n0.8
3.2 9.82

端子 TERMINAL

A B A-A B-B

1.4 2.4 1.6

A B 2.15 1.35

6.5
3.3

1.25 1.85

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs

46 LIANHE ELECTRONICS CO.,LTD.
