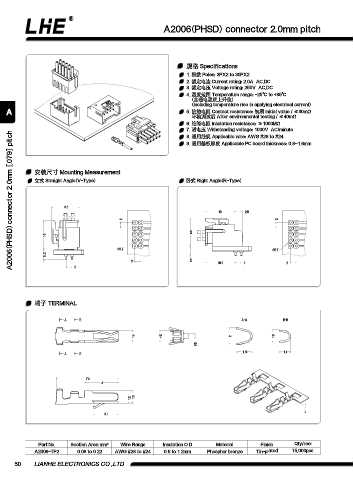

A2006(PHSD) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 3PX2 to 30PX2
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2006(PHSD) connector 2.0mm [.079] pitch
8. 適用線規 Applicable wire: AWG #28 to #24
9. 適用基板厚度 Applicable PC board thickness: 0.8~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

9.5
10 2.5
2 2
9.5
10

n0.7 n0.7
3.2
2 3.2 10.2 2 2
2

端子 TERMINAL

A B A-A B-B

1.4 1.5 2 1.5
0.6
1.85 1.4
A B

7.3
4

1.2 1.5

3.1

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2006-TP2 0.08 to 0.22 AWG #28 to #24 0.6 to 1.2mm Phosphor bronze Tin-plated 15,000pcs

50 LIANHE ELECTRONICS CO.,LTD.
