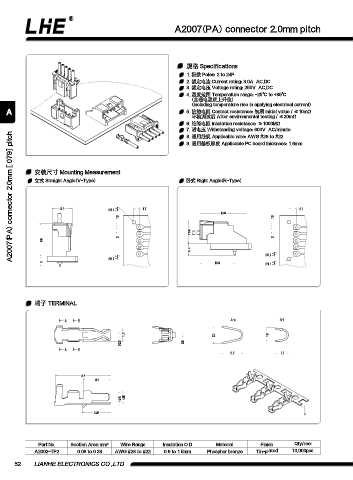

A2007(PA) connector 2.0mm pitch

規格 Specifications
1. 極數 Poles: 2 to 24P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 800V AC/minute
A2007(PA) connector 2.0mm [.079] pitch
8. 適用線規 Applicable wire: AWG #28 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

5.8 n 1.1 - 0 + 0.1 1.7 2.1
13.8
1.5 1.5
7.08
2 2
9.9
3.4
+ 0.1
n
+ 0.1 0.7 - 0
n 0.7 - 0
3 + 0.1
10.3 n 1.1 - 0

端子 TERMINAL

A B A-A B-B

1.5 2.1 1.6
0.25 0.6
A B
2.5 1.6

6.5
3.2

1.25 1.55

3.35

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2002-TP2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
