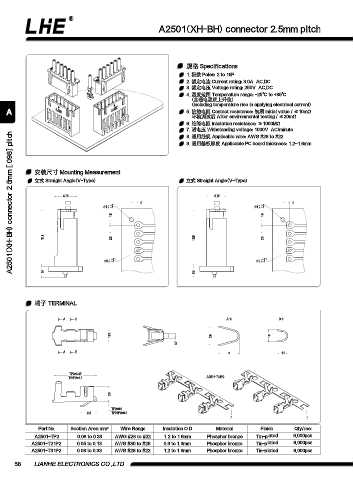

A2501(XH-BH) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2501(XH-BH) connector 2.5mm [.098] pitch
8. 適用線規 Applicable wire: AWG #28 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 立式 Straight Angle(V-Type)

6.75 5.75
2 2
+ 0.1 + 0.1
n 1.2 - 0 n 1.2 - 0
1.6 1.6

16.9 2.5 16.9 2.5

+ 0.1 + 0.1
n 0.9 - 0 n 0.9 - 0
3.4 3.4

端子 TERMINAL

A B A-A B-B

1.85 2.9 1.8
0.7
A B 3 1.5

TP2=6.45
T21P2= 6.3 A2501-T31P2

2.3

TP2=0.9
2.4 TP21P2= 0.8

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2501-TP2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs
A2501-T21P2 0.05 to 0.13 AWG #30 to #26 0.9 to 1.3mm Phosphor bronze Tin-plated 6,000pcs
A2501-T31P2 0.08 to 0.33 AWG #28 to #22 1.2 to 1.9mm Phosphor bronze Tin-plated 6,000pcs

58 LIANHE ELECTRONICS CO.,LTD.
