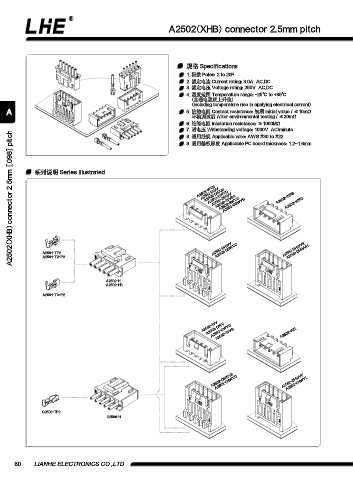

A2502(XHB) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 20P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2502(XHB) connector 2.5mm [.098] pitch
8. 適用線規 Applicable wire: AWG #30 to #22
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

系列說明 Series illustrated

A2502-WVB A2502-DBWV A2502-WRB
A2502-BWV
A2502-DWVB
A2502-DWVD
A2502-WVBG
A2502-BWVG
A2502-WRC
A2502-DBWVG

A2502-DHWV A2502-DHWVE
A2502-DHWVC
A2501-TP2 A2502-DHWVH
A2501-T21P2

A2502-H
A2502-HB
A2501-T31P2

A2502-WV A2502-WVG A2502-WR
A2502-DWV
A2502-DWVC

A2502-DHWVB A2502-DHWVF
A2502-DHWVD
A2502-DHWVI

C2508-TP2
C2508-H

60 LIANHE ELECTRONICS CO.,LTD.
