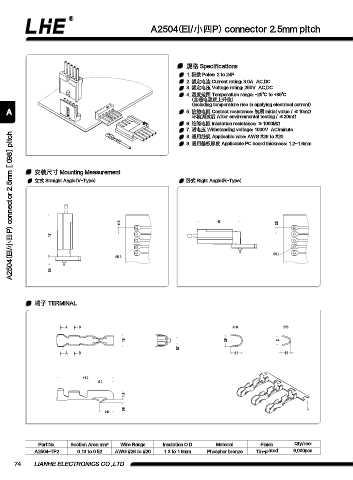

A2504(EI/小四P) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 24P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2504(EI/小四P) connector 2.5mm [.098] pitch
8. 適用線規 Applicable wire: AWG #26 to #20
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

17
2.5 2.5
17

n0.9
n0.9
3.4

端子 TERMINAL

A B A-A B-B

1.8 2.5 2
0.7
A B 2.3 1.8

11.2
5.2

1.9

2.8 0.6

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2504-TP2 0.13 to 0.52 AWG #26 to #20 1.3 to 1.9mm Phosphor bronze Tin-plated 9,000pcs

74 LIANHE ELECTRONICS CO.,LTD.
