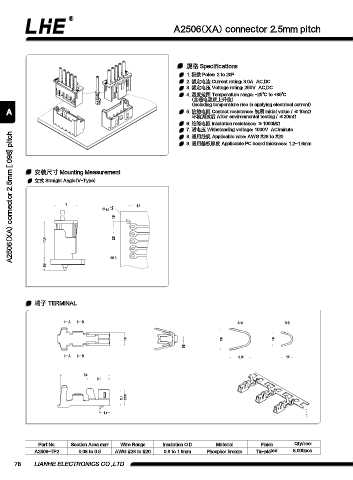

A2506(XA) connector 2.5mm pitch

規格 Specifications
1. 極數 Poles: 2 to 20P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤10mΩ
環境測試后 After environmental testing / ≤20mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 1000V AC/minute
A2506(XA) connector 2.5mm [.098] pitch
8. 適用線規 Applicable wire: AWG #28 to #20
9. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type)

7 1.6
n 1.2 - 0 + 0.1
1.6

11.4 2.5

n0.9
3.4

端子 TERMINAL

A B A-A B-B

1.8 2.9 1.9
0.8
A B 2.85 1.5

6.6
3.1

2.1 2.25

1.4

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A2506-TP2 0.08 to 0.5 AWG #28 to #20 0.8 to 1.9mm Phosphor bronze Tin-plated 8,000pcs
