P. 152
}

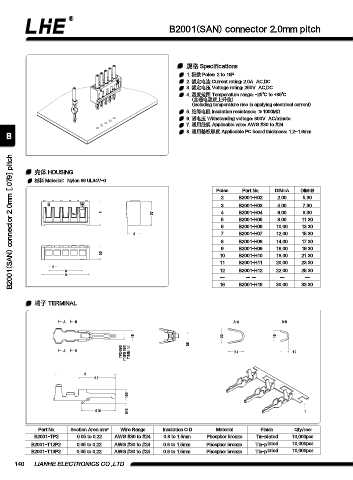

B2001(SAN) connector 2.0mm pitch
規(guī)格 Specifications
1. 極數(shù) Poles: 2 to 16P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 絕緣電阻 Insulation resistance: ≥1000MΩ
6. 耐電壓 Withstanding voltage: 800V AC/minute
7. 適用線規(guī) Applicable wire: AWG #30 to #24
B 8. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm
B2001(SAN) connector 2.0mm [.079] pitch
殼體 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B2001-H02 2.00 5.30
3 B2001-H03 4.00 7.30
4 B2001-H04 6.00 9.30
5.7
6
5 B2001-H05 8.00 11.30
6 B2001-H06 10.00 13.30
3 7 B2001-H07 12.00 15.30
8 B2001-H08 14.00 17.30
9 B2001-H09 16.00 19.30
3.3 10 B2001-H10 18.00 21.30
11 B2001-H11 20.00 23.30
2
A 12 B2001-H12 22.00 25.30
B
-- -- -- -- --
16 B2001-H16 30.00 33.30
端子 TERMINAL
A B A-A B-B
1.5 2.2 1.6
0.6
0.95
A B 2.4 1.2
TP2= T12P2=0.85 T13P2=1.1
9
5.5
1.65
5.05 0.45
Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
B2001-TP2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
B2001-T12P2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
B2001-T13P2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
140 LIANHE ELECTRONICS CO.,LTD.
