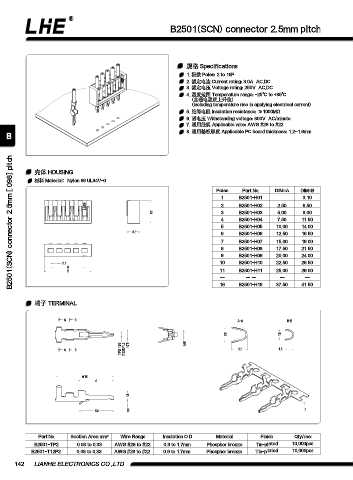

B2501(SCN) connector 2.5mm pitch

規(guī)格 Specifications
1. 極數(shù) Poles: 2 to 16P
2. 額定電流 Current rating: 3.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 絕緣電阻 Insulation resistance: ≥1000MΩ
6. 耐電壓 Withstanding voltage: 800V AC/minute
7. 適用線規(guī) Applicable wire: AWG #28 to #22
B 8. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm

B2501(SCN) connector 2.5mm [.098] pitch

殼體 HOUSING
材料 Material：Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
1 B2501-H01 3.10
2 B2501-H02 2.50 6.50
6.7 3 B2501-H03 5.00 9.00
4 B2501-H04 7.50 11.50
5 B2501-H05 10.00 14.00
3.8 6 B2501-H06 12.50 16.50
7 B2501-H07 15.00 19.00
8 B2501-H08 17.50 21.50
9 B2501-H09 20.00 24.00
2.5 10 B2501-H10 22.50 26.50
A
B 11 B2501-H11 25.00 29.00
-- -- -- -- --
16 B2501-H16 37.50 41.50

端子 TERMINAL

A B A-A B-B

2.6 1.8
1.05 1.75 0.65
A B T12P2=1.2 2.6 1.5
TP2=

9.75
6

1.8

5.8 0.5

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
B2501-TP2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 10,000pcs
B2501-T12P2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 10,000pcs

142 LIANHE ELECTRONICS CO.,LTD.
