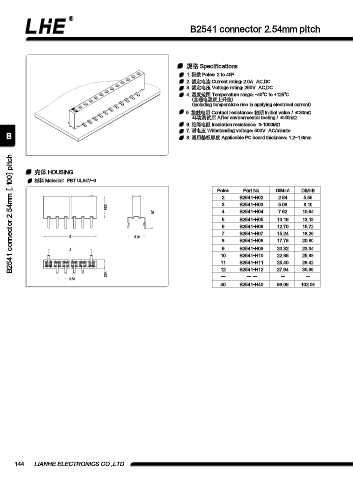

B2541 connector 2.54mm pitch
規(guī)格 Specifications
1. 極數(shù) Poles: 2 to 40P
2. 額定電流 Current rating: 2.0A AC,DC
3. 額定電壓 Voltage rating: 250V AC,DC
4. 溫度范圍 Temperature range: -40℃ to +125℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環(huán)境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥1000MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
B 8. 適用基板厚度 Applicable PC board thickness: 1.2~1.6mm
B2541 connector 2.54mm [.100] pitch
殼體 HOUSING
材料 Material：PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 B2541-H02 2.54 5.56
3 B2541-H03 5.08 8.10
6.55
9.7 4 B2541-H04 7.62 10.64
5 B2541-H05 10.16 13.18
6 B2541-H06 12.70 15.72
7 B2541-H07 15.24 18.26
B 5.08
8 B2541-H08 17.78 20.80
A 9 B2541-H09 20.32 23.34
10 B2541-H10 22.86 25.88
11 B2541-H11 25.40 28.42
12 B2541-H12 27.94 30.96
2.54
2.54 -- -- -- -- --
40 B2541-H40 99.06 102.08
