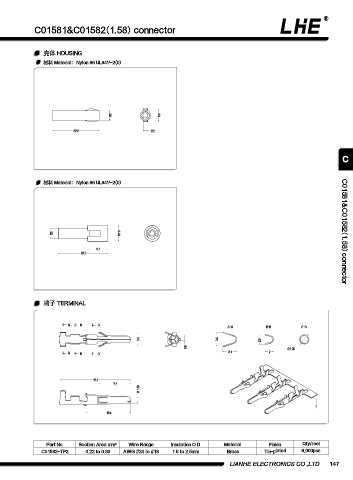

C01581&C01582(1.58) connector

殼體 HOUSING
材料 Material：Nylon 66 UL94V-2(0)

n5 6.3

22.2 2.2

C

材料 Material：Nylon 66 UL94V-2(0)

n5 n7.5 C01581&C01582(1.58) connector

9.5
23.5

端子 TERMINAL

A B C
A-A B-B C-C
3.3 3.4 2.4
0.6 n2.25
3.4 2
A B C

16.8
7.6
1.58
?

10.6

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C01582-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 147
