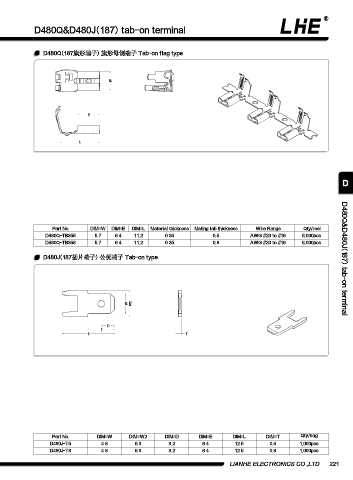

D480Q&D480J(187) tab-on terminal

D480Q(187旗形端子) 旗形母?jìng)?cè)端子 Tab-on flag type

W

E

L

D

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D480Q-TB355 5.7 6.4 11.2 0.35 0.5 AWG #20 to #16 5,000pcs
D480Q-TB358 5.7 6.4 11.2 0.35 0.8 AWG #20 to #16 5,000pcs

D480J(187插片端子) 公側(cè)端子 Tab-on type D480Q&D480J(187) tab-on terminal

W W2

D
E
L T

Part No. DIM=W DIM=W2 DIM=D DIM=E DIM=L DIM=T Qty/bag
D480J-T5 4.8 6.3 3.2 6.4 12.5 0.5 1,000pcs
D480J-T8 4.8 6.3 3.2 6.4 12.5 0.8 1,000pcs

LIANHE ELECTRONICS CO.,LTD. 221
