P. 234
}

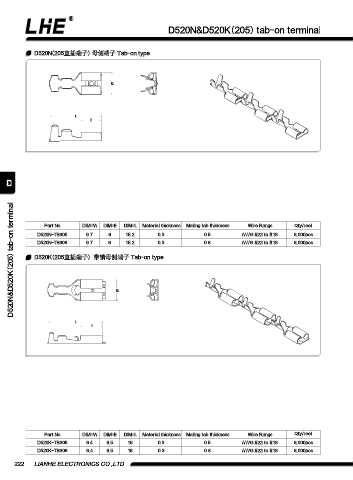

D520N&D520K(205) tab-on terminal
D520N(205直插端子) 母側(cè)端子 Tab-on type
W
L
E
D
D520N&D520K(205) tab-on terminal
Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D520N-TB305 6.7 6 15.2 0.3 0.5 AWG #22 to #18 8,000pcs
D520N-TB308 6.7 6 15.2 0.3 0.8 AWG #22 to #18 8,000pcs
D520K(205直插端子) 帶鎖母側(cè)端子 Tab-on type
W
L
E
Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D520K-TB305 6.4 6.5 16 0.3 0.5 AWG #22 to #18 8,000pcs
D520K-TB308 6.4 6.5 16 0.3 0.8 AWG #22 to #18 8,000pcs
222 LIANHE ELECTRONICS CO.,LTD.
