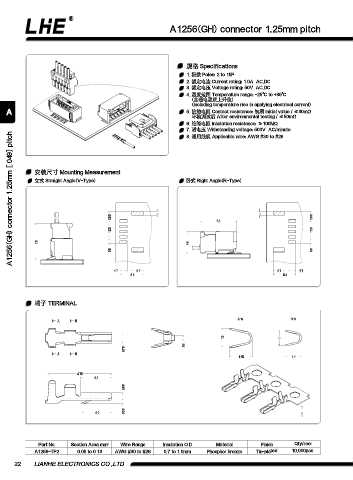

A1256(GH) connector 1.25mm pitch

規格 Specifications
1. 極數 Poles: 2 to 15P
2. 額定電流 Current rating: 1.0A AC,DC
3. 額定電壓 Voltage rating: 50V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
A 5. 接觸電阻 Contact resistance: 初期 Initial value / ≤30mΩ
環境測試后 After environmental testing / ≤50mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
A1256(GH) connector 1.25mm [.049] pitch
8. 適用線規 Applicable wire: AWG #30 to #26

安裝尺寸 Mounting Measurement
立式 Straight Angle(V-Type) 臥式 Right Angle(R-Type)

1 1
2.65 2.65
7.3
1.25 1.25
7.3 4.4
0.6 0.6

1.7 2.8 2.7 1.7
5.6 5.4

端子 TERMINAL

A-A B-B
A B

1.3 1
0.4
0.75
A B
1.65 1.1

4.75
2.3
0.55

2.2 0.25

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
A1256-TP2 0.05 to 0.13 AWG #30 to #26 0.7 to 1.0mm Phosphor bronze Tin-plated 10,000pcs

22 LIANHE ELECTRONICS CO.,LTD.
